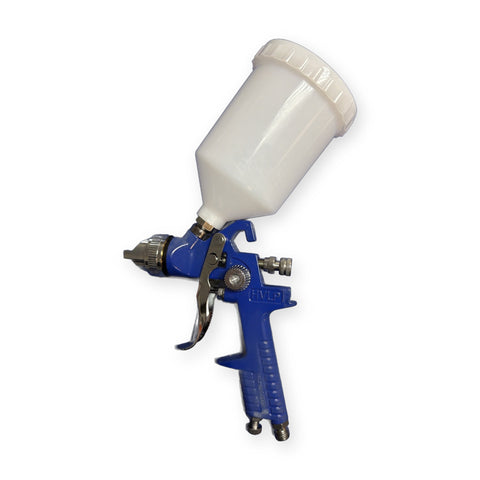

Finish-Rite HVLP Gravity Feed Spray Gun with 600ml Cup – 1.3mm Tip
Description:
Get a smooth, even finish with this Finish-Rite H-827P HVLP gravity feed spray gun, built for automotive refinishing, touch-ups, and DIY projects. High Volume Low Pressure technology delivers more paint to the panel and less into the air, so you get less overspray, less waste, and a cleaner work area.
1.3mm: Ideal for basecoats, clearcoats, and single-stage paints. Fine atomization for a glass-smooth finish. Spraying primer? Check out the 2.0mm version of this gun.
Compressor requirement: This gun needs a compressor that can supply at least 6–11 CFM at 45–60 PSI. Small pancake or hobby compressors may not keep up.
Features:
- HVLP design for high transfer efficiency, saves up to 25% paint and reduces overspray
- Stainless steel nozzle and needle, works with waterborne and solvent-based paints
- Large translucent 600ml gravity-feed cup, so you can see your material level at a glance
- Three adjustment knobs: fluid flow, fan pattern, and air pressure
- Ergonomic grip and lightweight body for less fatigue
- Built-in paint strainer keeps debris out of your finish

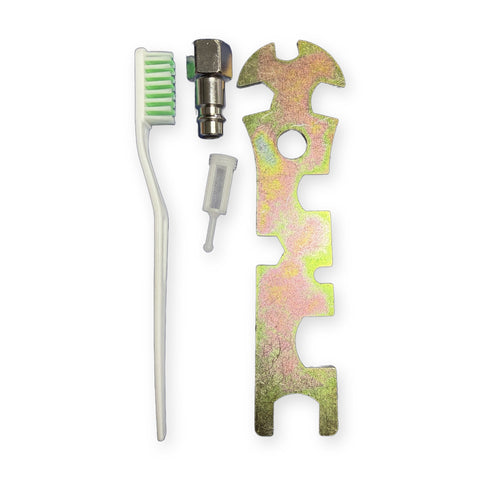

What’s in the box:
- HVLP spray gun with 600ml gravity cup
- 1/4" air inlet plug (quick-connect)
- Cup paint strainer/filter
- Multi-purpose service wrench
- Cleaning brush
Specifications:
- Model: H-827P
- Type: HVLP gravity feed
- Nozzle size: 1.3mm
- Nozzle and needle: Stainless steel
- Cup capacity: 600ml
- Air inlet: 1/4"
- Air consumption: 6.0–11 CFM (170–300 L/min)
- Air pressure: 45–60 PSI (3–4 bar)
Pro tip: Clean the gun right after every use with the correct solvent (lacquer thinner or reducer for solvent-based paints, water for waterborne). Use the included brush and wrench.
